Product Description

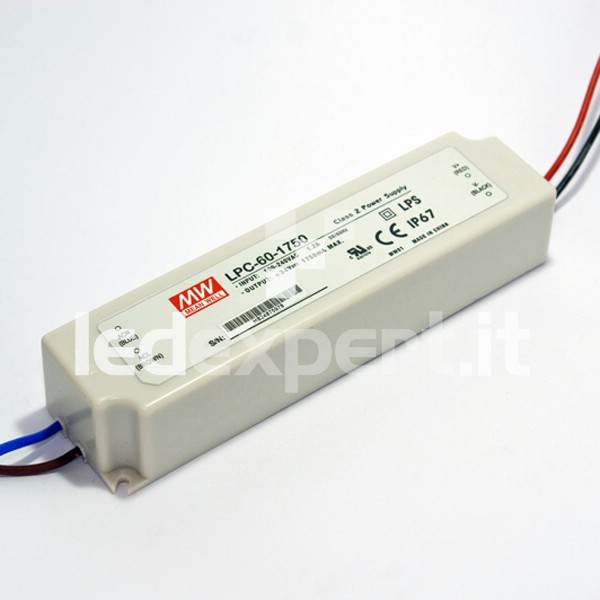

Constant current LED driver.
Supply voltage from 9 to 34 volts - Output current 1750mA.
Ideal for driving high power LEDs of 30 Watt.
Equipped with protection IP67 is also suitable for outdoor applications, especially on illuminated signs.
<p><span style="font-size: small; color: #d51b1b;"><strong><a href="http://www.Ledexpert.it/pdf/LPC-60-ing.pdf" target="_blank">Download the product sheet</a></strong></span></p>
Additional Information
| Output rated current | 1750 mA |
|---|---|
| Output DC voltage range | 9 ~ 34V |
| Output rated power | 59.5 W |
| Ripple & Noise | 200mVp-p |
| Output voltage tolerance | ± 5.0% |
| Output current accuracy | ± 5.0% |
| Output line regulation | ± 1.0% |
| Output load regulation | ± 2.0% |
| Setup | 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load |
| Input voltage range | 90 ~ 264VAC 127 ~ 370VDC |
| Input frequency range | 47 ~ 63Hz |
| Dimension | 162.5x42.5x32 mm |
