- 7650 mA Led Driver
Category
TweetFollow @Ledexpertit
Product Description

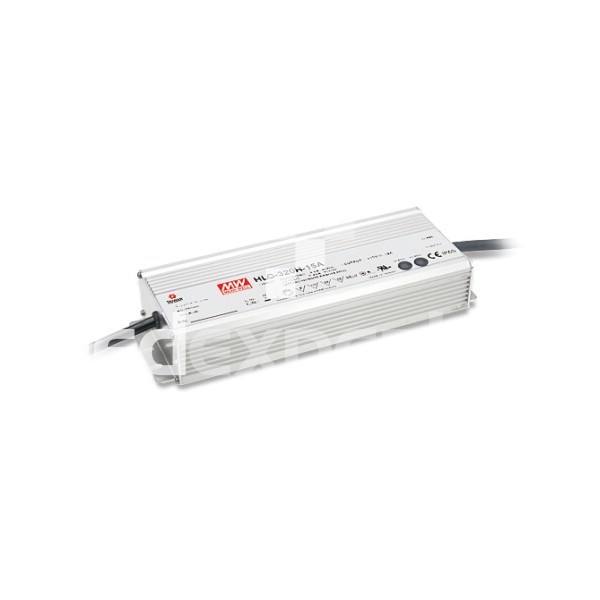

Constant current LED driver.
Supply voltage from 21 to 42 volts - Output current 7650mA.
Ideal for driving high power LEDs of 300 Watt.
Equipped with protection IP65 is also suitable for outdoor applications, especially on illuminated signs.
<p><span style="font-size: small; color: #d51b1b;"><strong><a href="http://www.Ledexpert.it/pdf/HLG-320H-eng TipoA.pdf" target="_blank">Download the product sheet</a></strong></span></p>
Additional Information
| Output rated current | 7650 mA |
|---|---|
| Output DC voltage range | 21 ~ 42V |
| Output rated power | 321.3 W |
| Ripple & Noise | 250mVp-p |
| Output voltage tolerance | ± 1.0% |
| Output current accuracy | ± 1.0% |
| Output line regulation | ± 0.5% |
| Output load regulation | ± 0.5% |
| Setup | 2500ms, 80ms at full load 230VAC /115VAC at full load |
| Input voltage range | 90 ~ 305VAC 127 ~ 431VDC |
| Input frequency range | 47 ~ 63Hz |
| Dimension | 252x90x43,8 mm |
